Details matter

Expand what’s possible in visual communication with CorelDRAW® Technical Suite, a comprehensive collection of applications for high-impact technical design and documentation.

From wireframe to wow
Design

Precise

Find a range of precise illustration and design tools to create detailed technical documentation with exact specifications.

Collaborate

Productive

Enjoy a seamless workflow from opening 2D and 3D source files, photos, documents and data, to producing, reviewing, and publishing technical communications.

Done

Comprehensive

Count on this complete suite of professional design applications for authoring technical documentation, reviewing, and publishing detailed illustrations with ease.

Done

Collaborative

Connect with cross-functional teams and clients using popular authoring systems integration—from project creation and authoring to collaborative review and output.

A collection of versatile design and drafting applications

Corel DESIGNER™

Corel DESIGNER™

Technical design & illustration - Achieve accurate results with powerful technical design and illustration tools.

CorelDRAW®

CorelDRAW®

Graphics & layout design - Tackle any project with this complete graphic design application for vector illustration, page layout and more.

Corel PHOTO-PAINT™

Corel PHOTO-PAINT™

Photo editing & digital painting - Make the most of your photos with the robust photo-editing capabilities of Corel PHOTO-PAINT. Enjoy an integrated workflow with Corel DESIGNER and CorelDRAW.

XVL Studio Corel Edition

XVL Studio Corel Edition

3D repurposing - Add context to your technical projects by using 3D views and models in your illustrations.

CorelDRAW.app™

CorelDRAW.app™

Browser-based vector illustration and graphic design - Use CorelDRAW.app on web or iPad for convenient collaborative file review or to design on the go

Corel® Font Manager

Corel® Font Manager

Font exploration and management tool - Organize and manage your font library with the simple, yet intuitive, Corel Font Manager, and use your favorite fonts without needing to install them.

CAPTURE™

CAPTURE™

Screen capture tool - Capture and save images of your computer screen, including the entire screen, individual windows, or menu lists, in one click with CAPTURE.

AfterShot™ HDR

AfterShot™ HDR

RAW photo editor - Make professional-grade corrections and enhancements to RAW or JPEG photos and create high dynamic range images with AfterShot HDR. Available in English, German and Japanese

Corel DESIGNER™

Corel DESIGNER™
Technical design & illustration

Achieve accurate results with powerful technical design and illustration tools.

CorelDRAW®

CorelDRAW®
Graphics & layout design

Tackle any project with this complete graphic design application for vector illustration, page layout and more.

Corel PHOTO-PAINT™

Corel PHOTO-PAINT™
Photo editing & digital painting

Make the most of your photos with the robust photo-editing capabilities of Corel PHOTO-PAINT. Enjoy an integrated workflow with Corel DESIGNER and CorelDRAW.

XVL Studio Corel Edition

XVL Studio Corel Edition
3D repurposing

Add context to your technical projects by using 3D views and models in your illustrations.

CorelDRAW.app™

CorelDRAW.app™
Browser-based vector illustration and graphic design

Use CorelDRAW.app on web or iPad for convenient collaborative file review or to design on the go.

Corel® Font Manager

Corel® Font Manager
Font exploration and management tool

Organize and manage your font library with the simple, yet intuitive, Corel Font Manager, and use your favorite fonts without needing to install them.

CAPTURE™

CAPTURE™
Screen capture tool

Capture and save images of your computer screen, including the entire screen, individual windows, or menu lists, in one click with CAPTURE.

AfterShot™ 3 HDR

AfterShot™ HDR
RAW photo editor

Make professional-grade corrections and enhancements to RAW or JPEG photos and create high dynamic range images with AfterShot HDR. Available in English, German and Japanese

Why choose CorelDRAW Technical Suite?

This suite will take your technical illustrations from concept to compliance.

Create everything from precise technical illustrations with Corel DESIGNER to stand-out marketing collateral with CorelDRAW. Edit photos for documentation with Corel PHOTO-PAINT and add screenshots with CAPTURE. When you’re ready to share files for collaborative review and approval, use CorelDRAW.app for web or iPad to streamline the stakeholder feedback process.

What’s new?

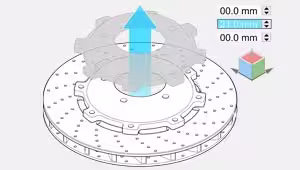

Experience a seamless transition from 3D design to illustration

Turn repurposed 3D engineering data into detailed technical illustrations with ease.

play

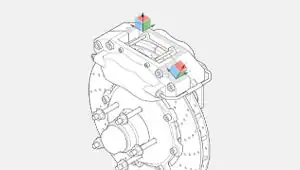

By referencing the center and edges of a threadless bolt, the 3-Point Thread Creation tool accurately snaps to the sides of your bolt as you drag the thread along it.

Work faster with a reimagined approach to technical illustration

Experience streamlined technical illustration with professional design and documentation features. Find your frequently used tools concentrated where they matter most—at your fingertips.

Create seamless curves effortlessly with the Variable Outline tool, enabling you to interactively adjust the outline width along a path.

Create complete spare parts pages with impressive new functionality

Create detailed spare parts pages with complete control, thanks to a series of noteworthy new features purpose-built to power discrete manufacturing workflows.

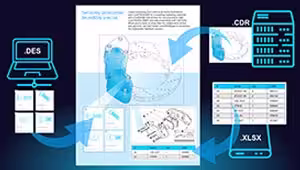

Convey parts information with even more clarity by linking drawing callouts to table rows, so that on hover, the corresponding information is highlighted.
play

Work better together with collaborative review and approval

Stay connected with colleagues and clients in powerful ways as remote work becomes the new normal.

play

  • Project Dashboard

    Intuitively store, organize, and share cloud files using the project dashboard.

  • Live Comments

    Gather live comments and annotations from contributors directly in your .DES or .CDR design file.

Dynamic asset management

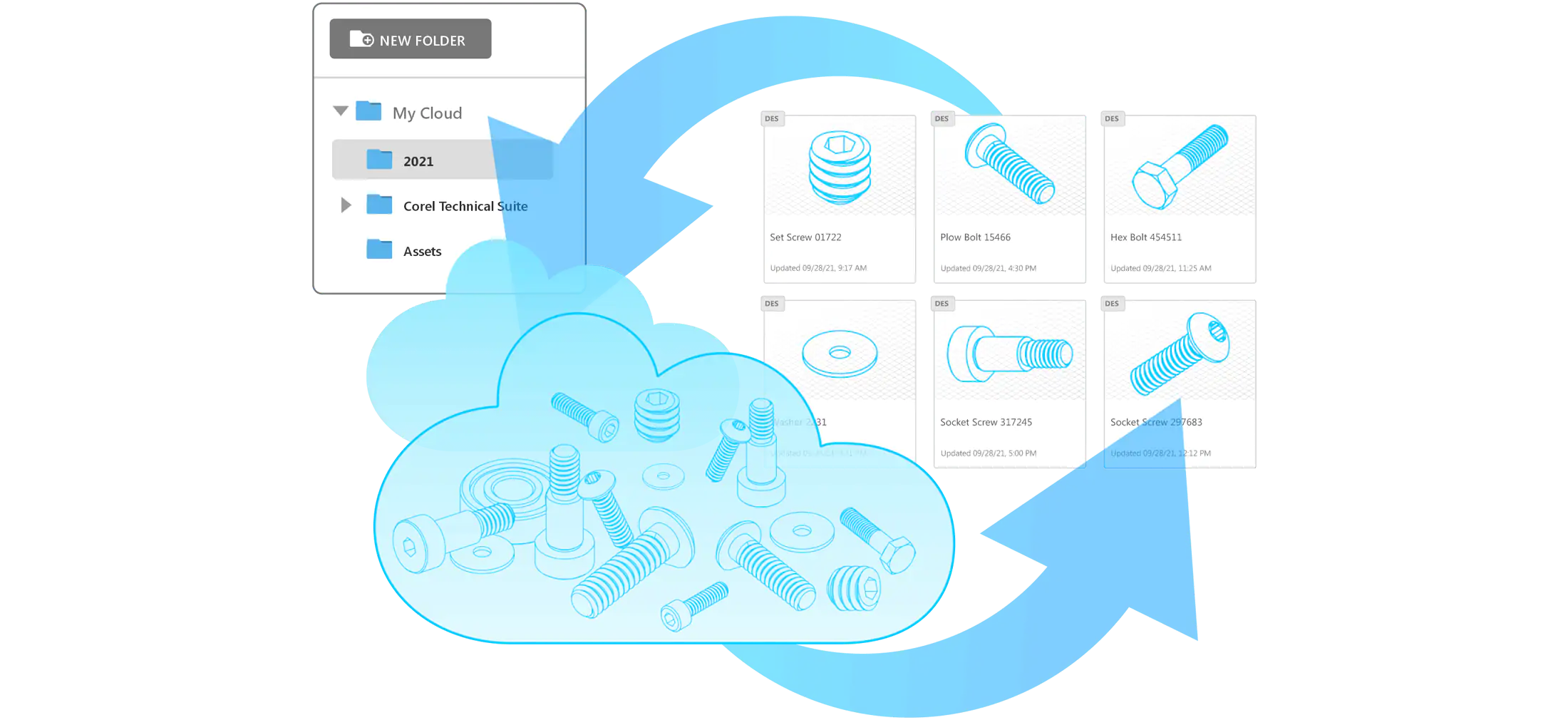

Ensure you’re always working with the most current symbols, thanks to an impressive new asset management workflow. Create a single source of truth for design assets by sharing symbols across projects and with teams, and syncing updates when changes are made by you or others.

Dynamic asset management
Transform technical designs into compelling marketing assets

Transform technical designs into compelling marketing assets

This fully loaded suite of dedicated applications extends the reach of visual communications.

  • Draw in perspective

    Add creative touches in 1, 2 or 3-point perspective, in Corel DESIGNER and CorelDRAW, using the Draw in Perspective feature. 

  • Multipage view

    View, manage, and edit all your project’s digital assets in one flexible design space.

  • Corel PHOTO-PAINT enhancements

    Get quick access to your most frequently used filters and apply critical image adjustments non-destructively, thanks to the Adjustments docker.

Tools for high-impact visual communication

From aerospace and automotive to engineering, architecture and high tech, we’ve got you covered with timesaving illustration features and game-changing tools to help reach new levels of productivity.

Precise

Precise
Productive

Productive
Innovative

Innovative
COMPATIBILITY

Compatible
Precise icon

Precise

Productivity

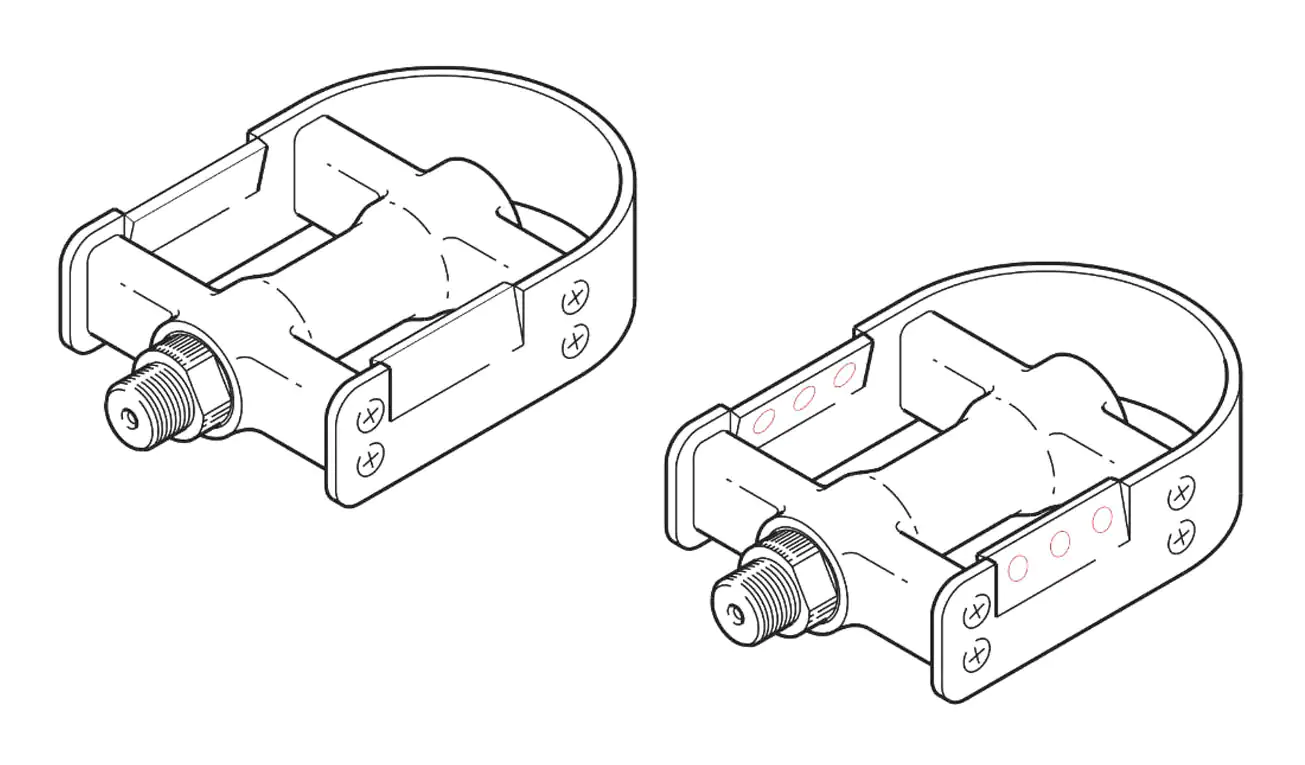

Create isometric or other parallel projected technical illustrations for assembly and maintenance instructions by dynamically drawing on a projected plane. Project your existing planar objects to a desired plane in lieu of manual calculations. Watch video
Productive icon

Productive

Productive
Add interactive functions to callout shapes in technical publications with the callout drawing tool in Corel DESIGNER. Draw and attach callouts to nested groups by automatically applying hotspots and object information on callouts, saving you time. Watch video
Innovative icon

Innovative

innovative

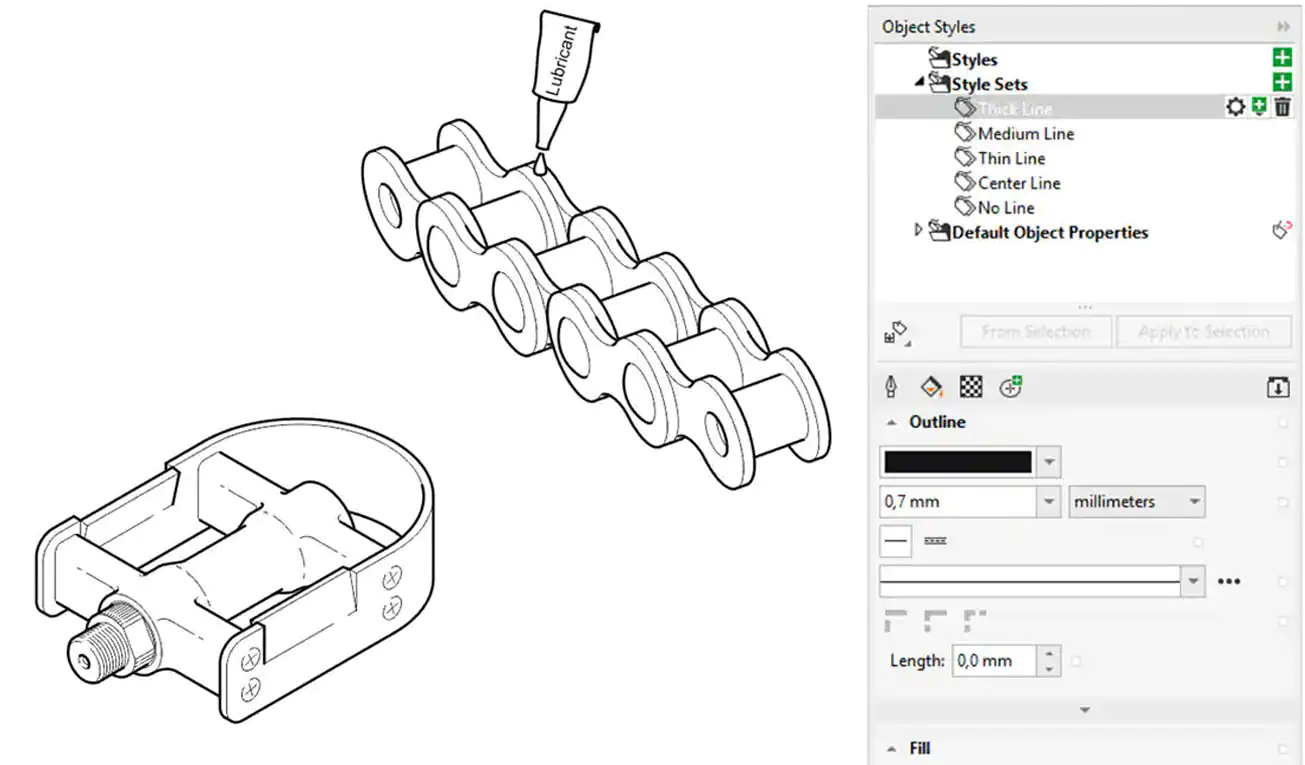

Easily add depth to an isometric with the time saving Thick and Thin Lines feature. Automatically apply two line weights at once and reverse them in a click. Watch video
Compatible icon

Compatible

Compatible

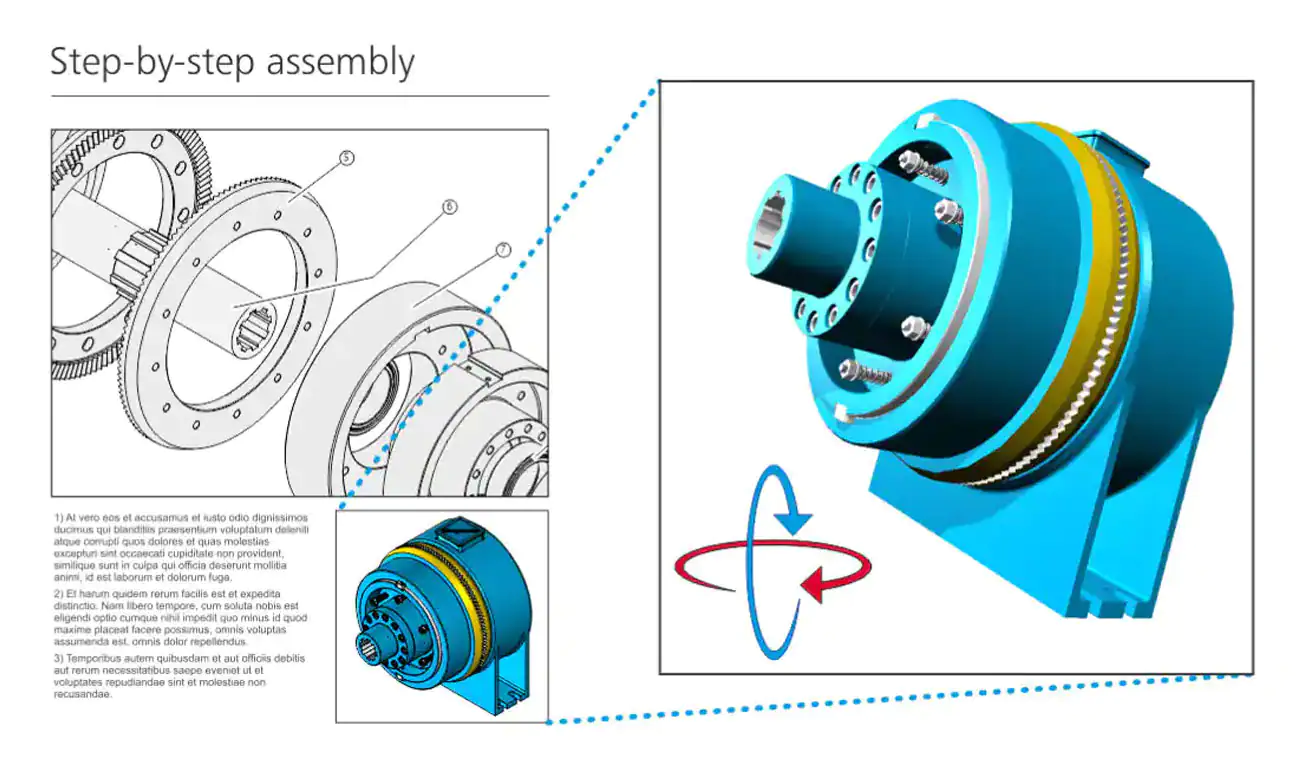

Publish to 3D PDF with interactive viewing of 3D content, combined with other visual and text elements. Export from Corel DESIGNER to 3D PDF to generate output with pertinent data and graphics in one document for cross- media publishing. 3D PDF files can be viewed with free PDF reader applications. Watch video
